COMPANY OVERVIEW
  • Designing and building watercraft since 1987
  • Over 80 watercraft and automotive design patents
  • Recognized with innovative design awards
  • Fire Department Appreciation and Quality Award
EXTREME DUTY HULL CONSTRUCTION
  • Hand Laid E-Glass – biaxial and bi-directional
  • Closed cell flotation foam injected cavities
  • Self Bailing deck
  • “Unsinkable” hull
  • Fiberglass boxed and incased stringers
  • Gelcoated interior and exterior hull
  • Meets or exceeds USCG, ABYC, NMMA and Transport Canada standards
Boats Model introduction
  • 15'，18'，20'，24'，26'，28'
  • 3010,3210,3510,3710 (10' beams)

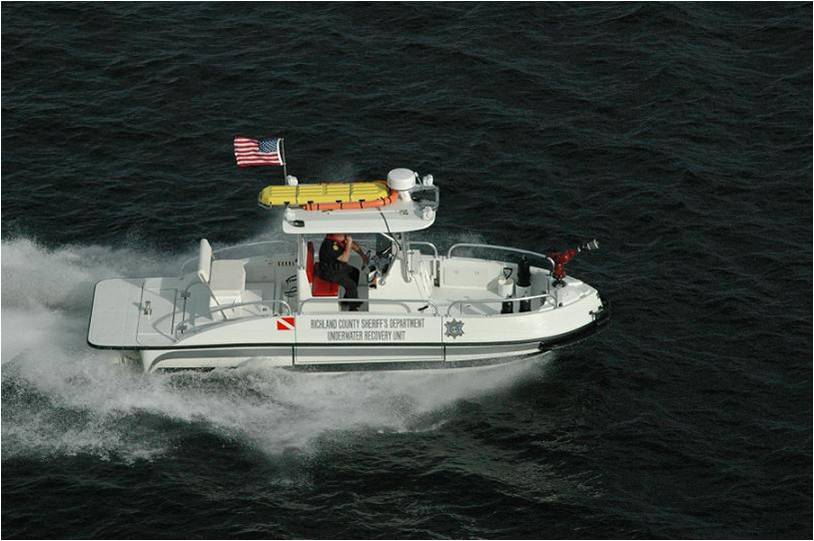

  • DEFENDER – Patrol, Dive, Rescue
  • FIREHAWK – with Fire Pump System
  • INTERCEPTOR– Emergency Response

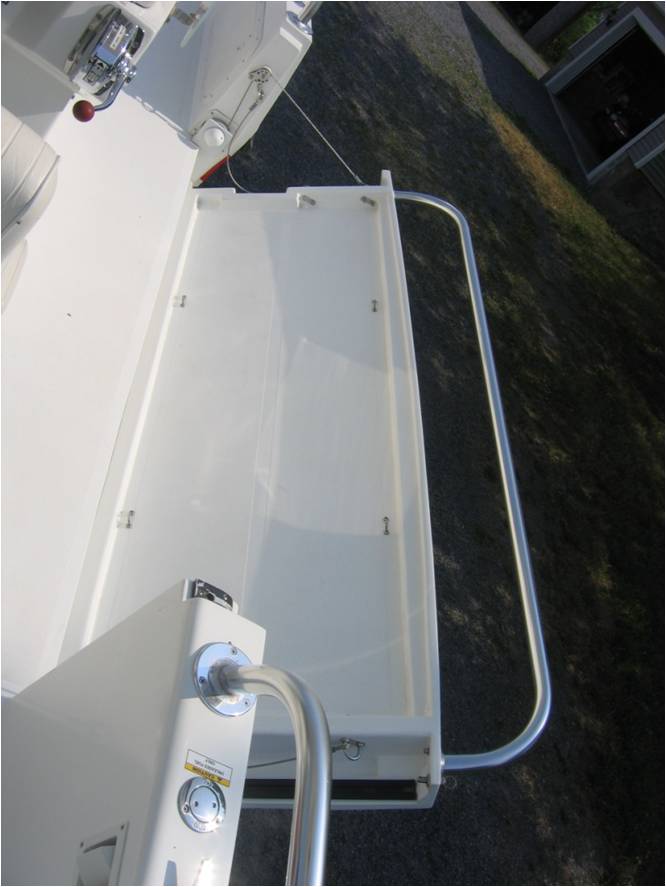

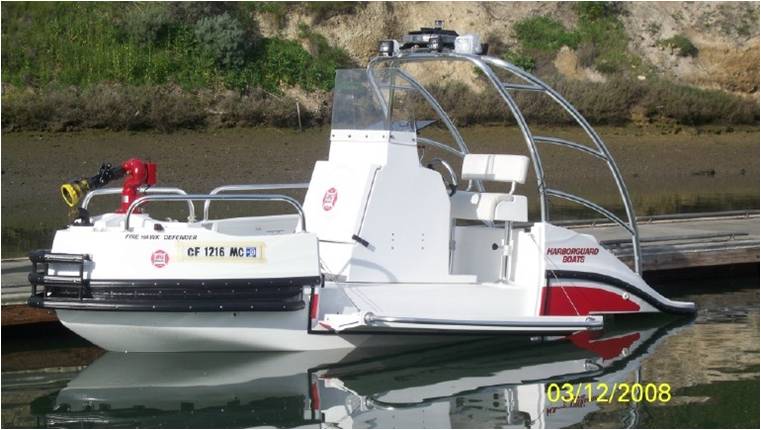

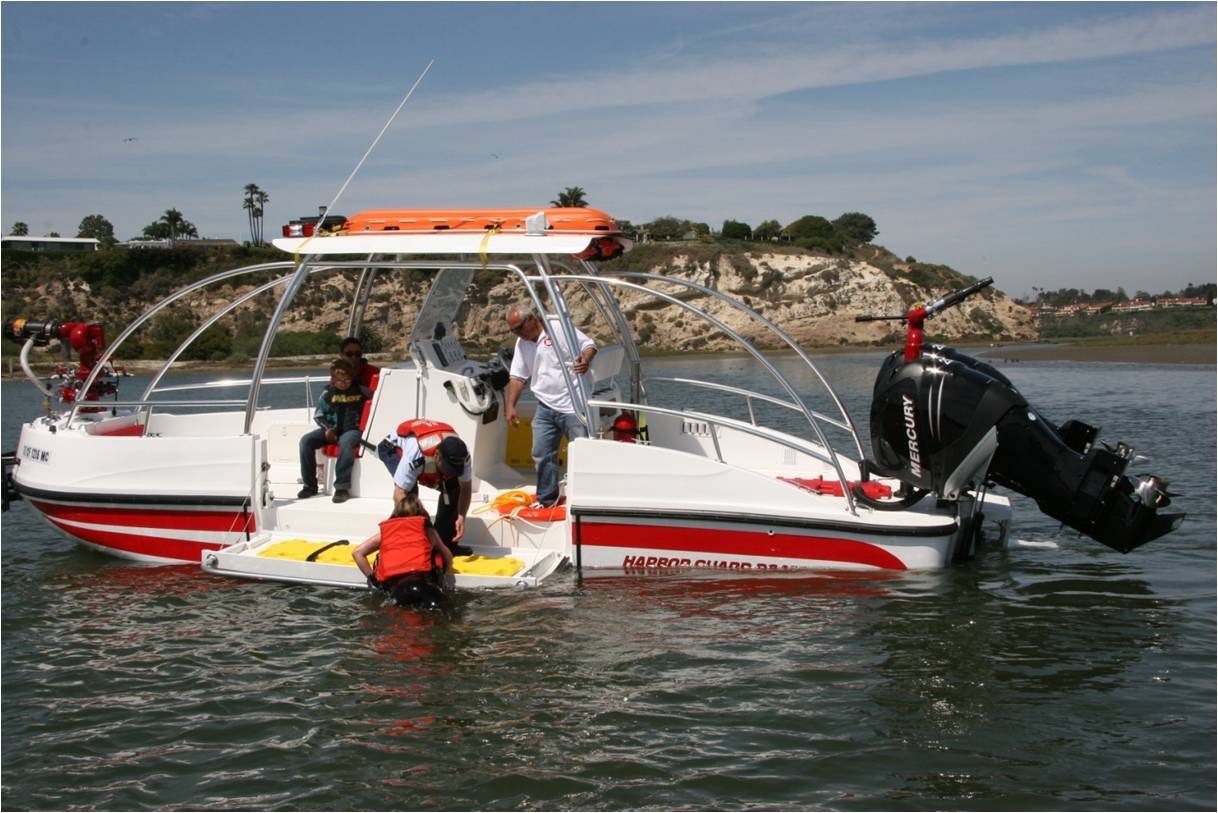

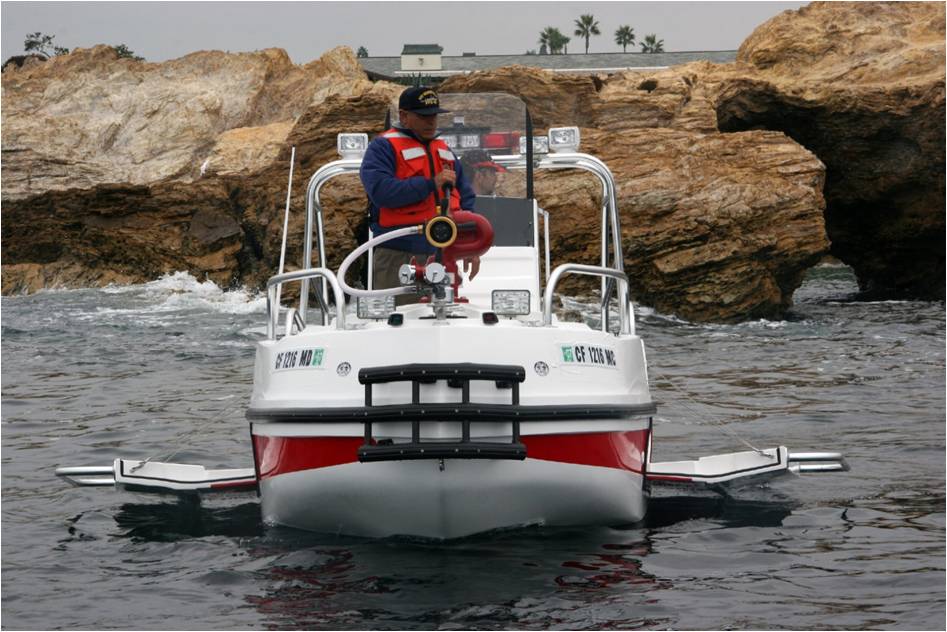

  • Standard Patented Waterline Dive/Platforms
    • 8’ (2.4m) Port and Starboard access doors
    • Electrically controlled from operators helm
    • Heavy Duty construction and foam filled
    • Lower to the waterline for easier access
  • Benefits of Waterline Dive/Platforms Compared to traditional dive access openings
    • Wider access for more people to board at one time
    • Lower to the waterline for easier access
    • Lowered Doors allow boat operator to keep a safer distance between vessel and persons in the water
    • Dive doors away from engines
    • Lowered doors provide boat operator high visibility to obstacles and persons in the water
    • Board easier at waterline with increased visibility
    • Maneuver with doors down
  • DEFENDER and FIREHAWK Models available in 18’to 37’ (5.5 – 11.5 m)

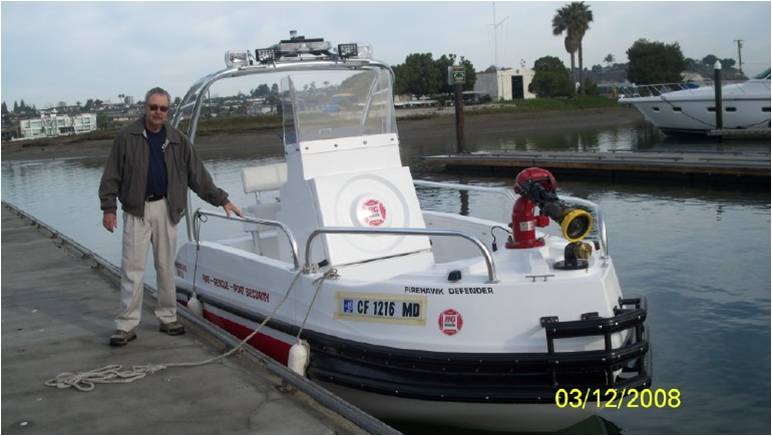

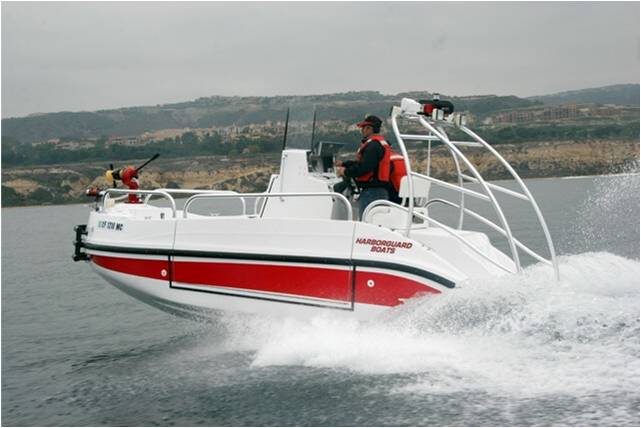

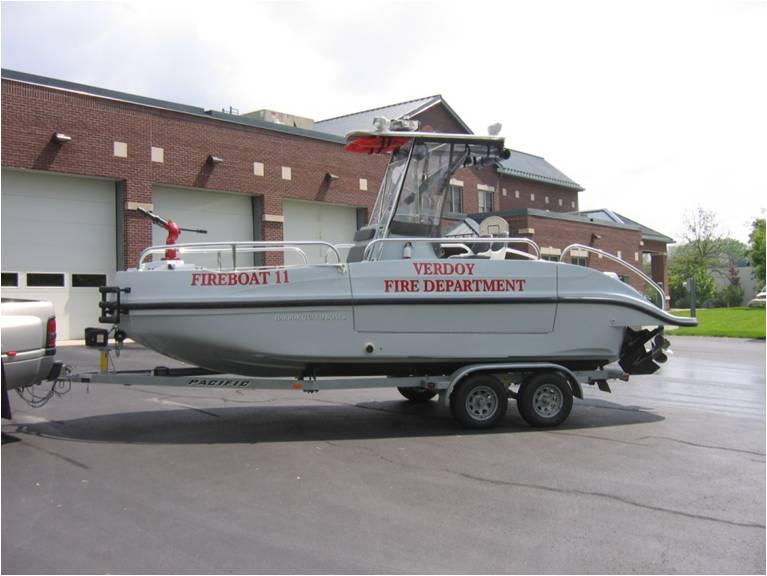

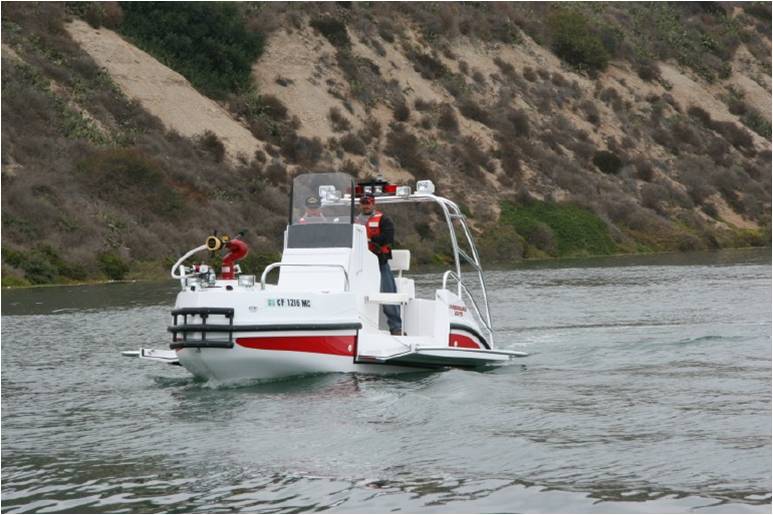

  • 18’ (5.5m) Model

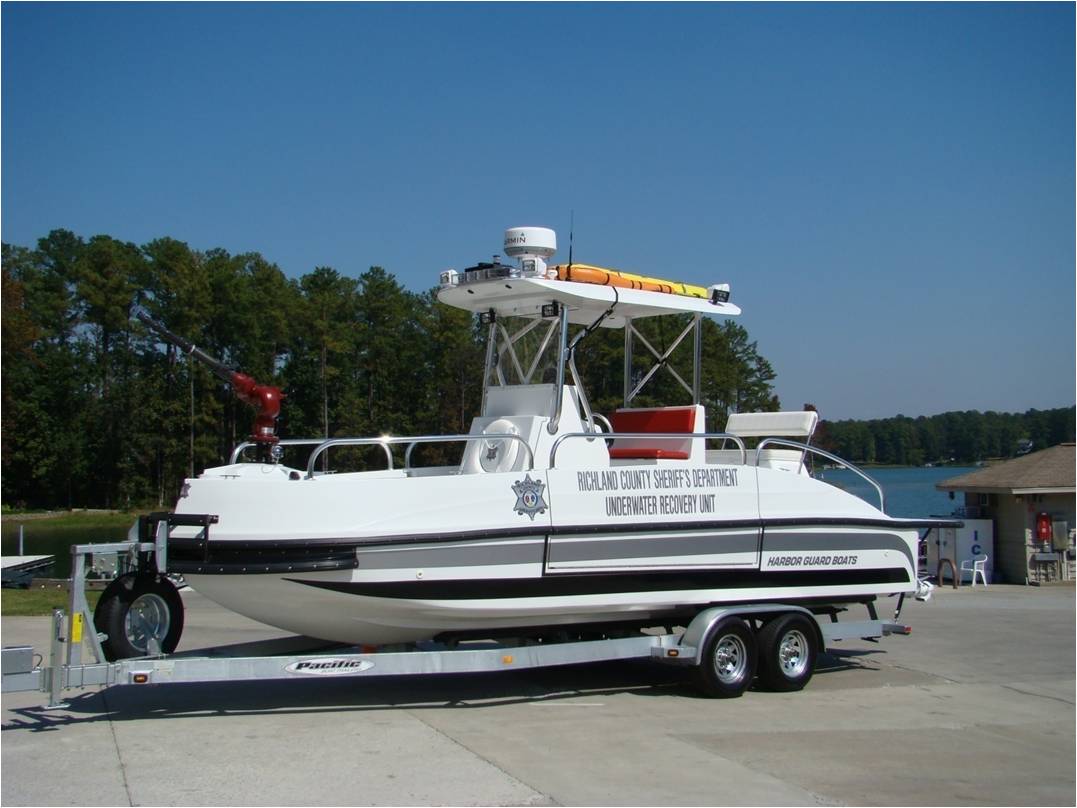

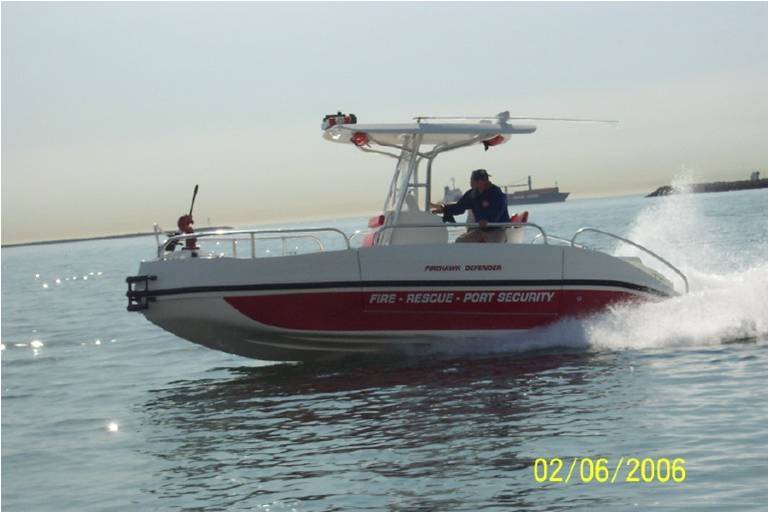

  • 24’ (7m) Model

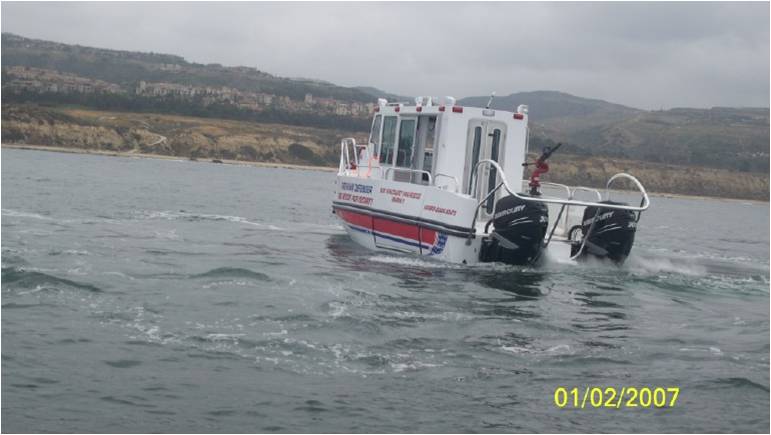

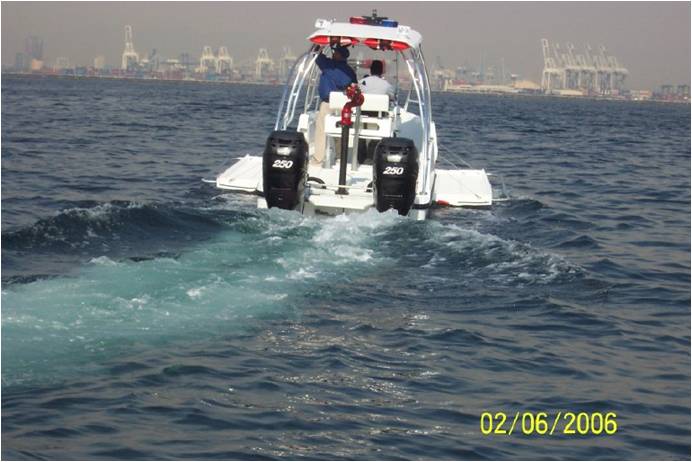

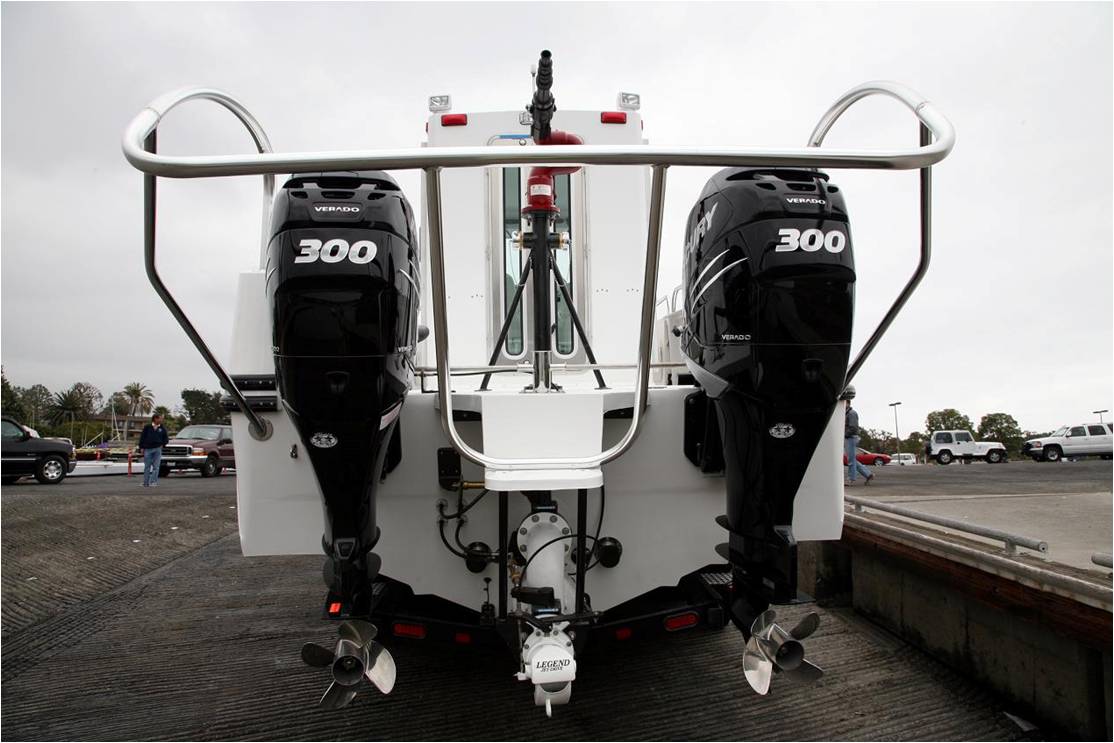

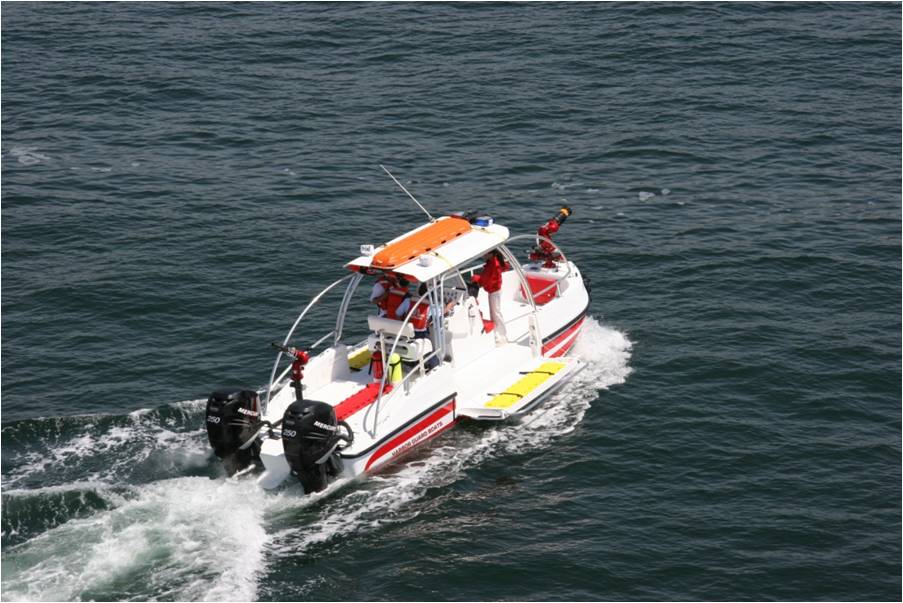

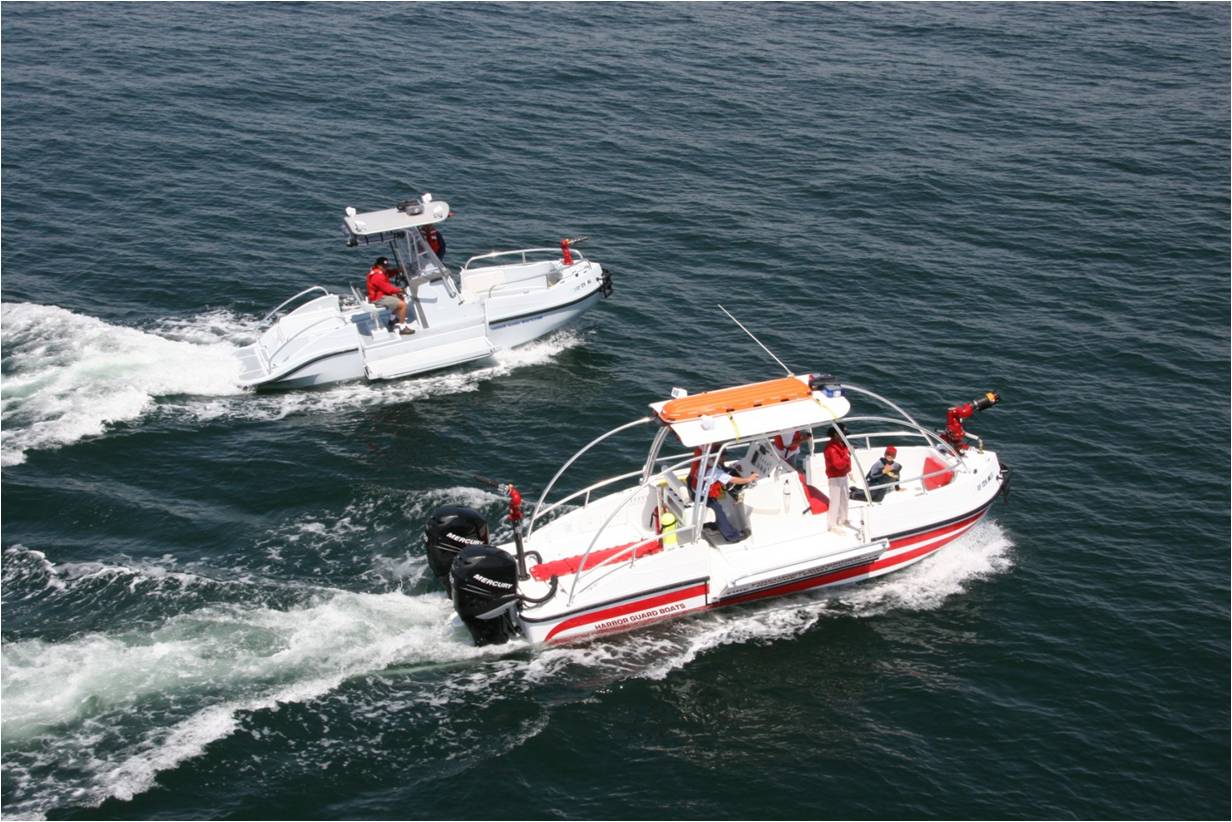

  • 24’ (7m) Model Twin Outboards

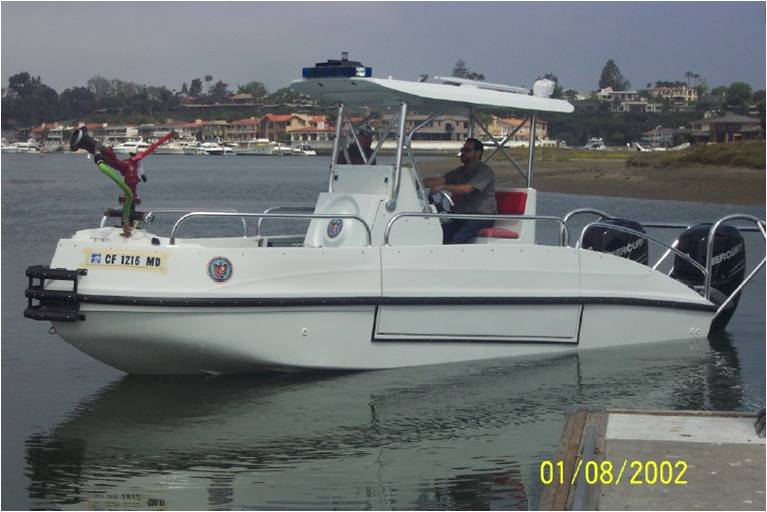

  • 24’ (7m) Model Single Outboard
  • 26’ (7.8m) Model Twin Jet Drives and Two Person Pilot House

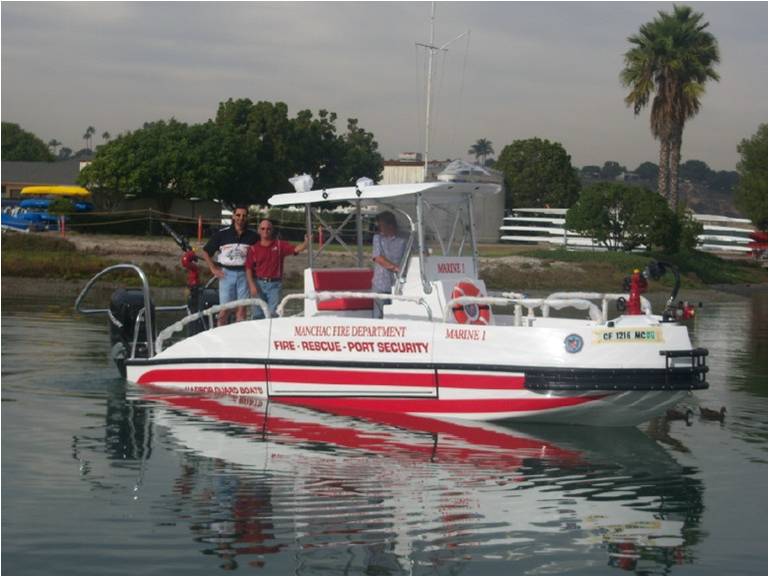

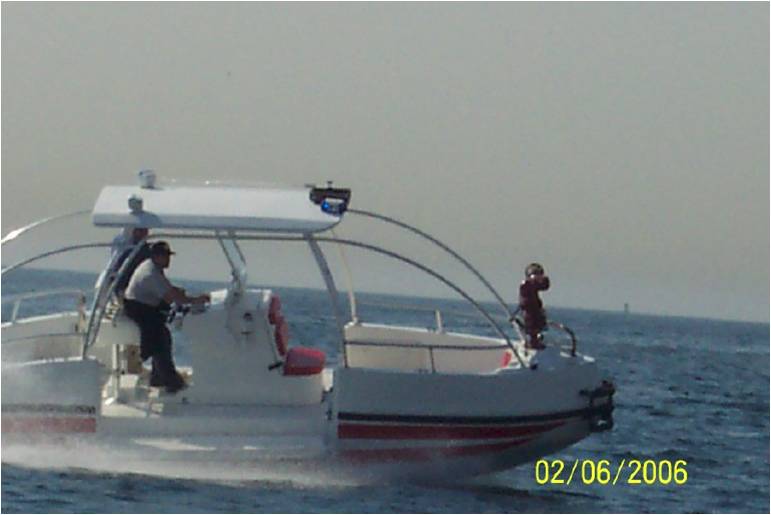

  • 26-28’ (7.8- 8m) Model With Standard open center console and hard top canopy

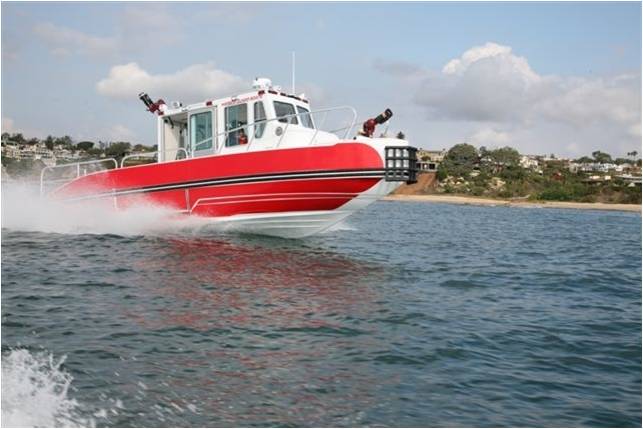

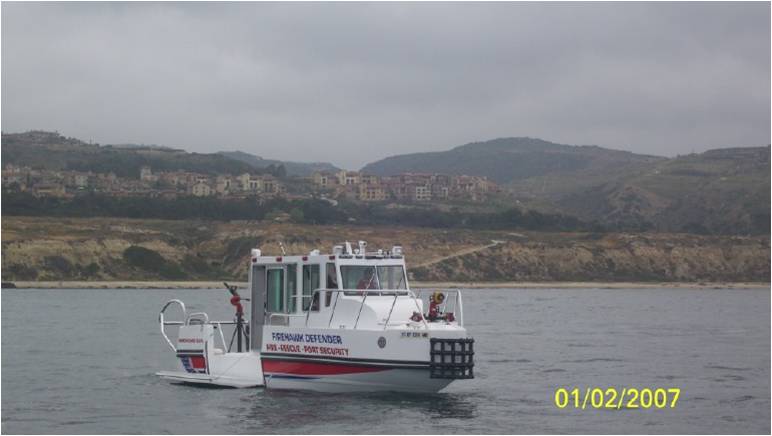

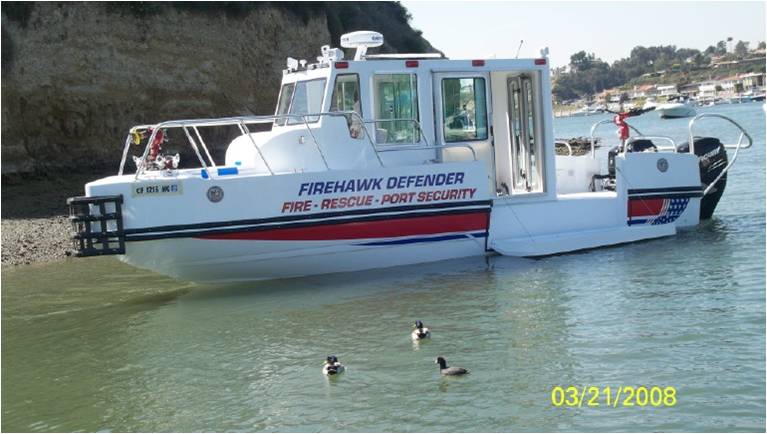

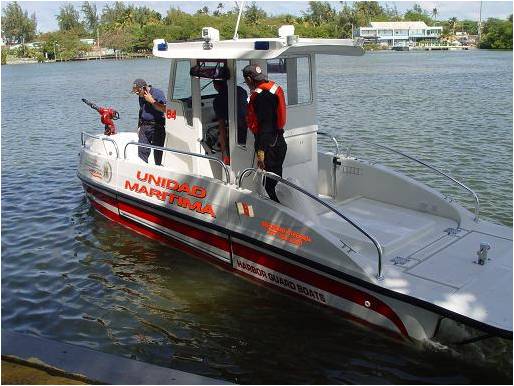

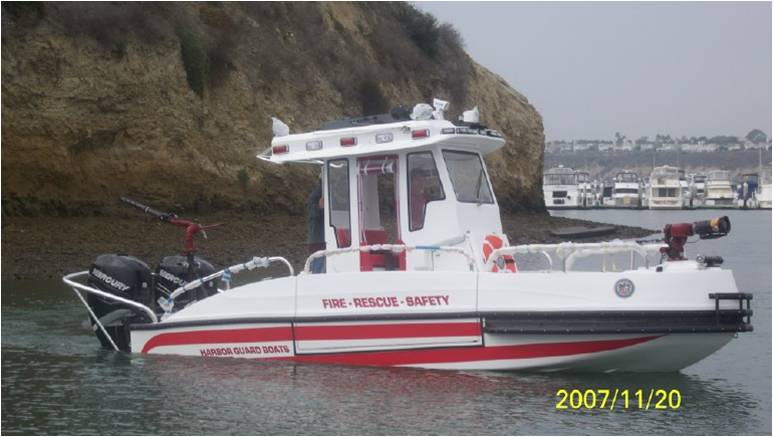

  • 28’ (8m) Model With optional Two person enclosed pilot house, 4 Person Pilot house also available
  • 28’ (8m) Model Twin Jet Drives, Optional Rear Bench Seat

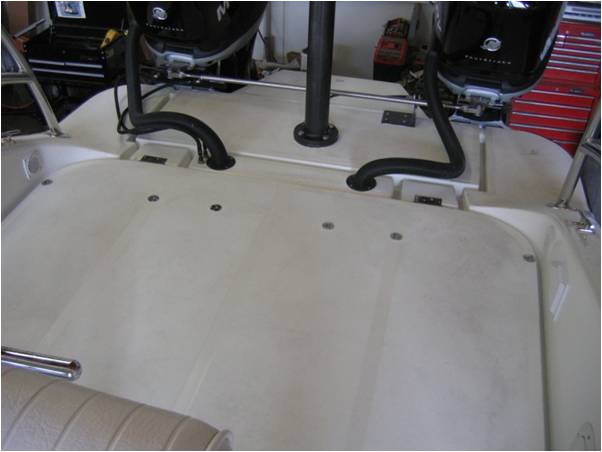

  • 28’ (7.8m) Model Rear Deck

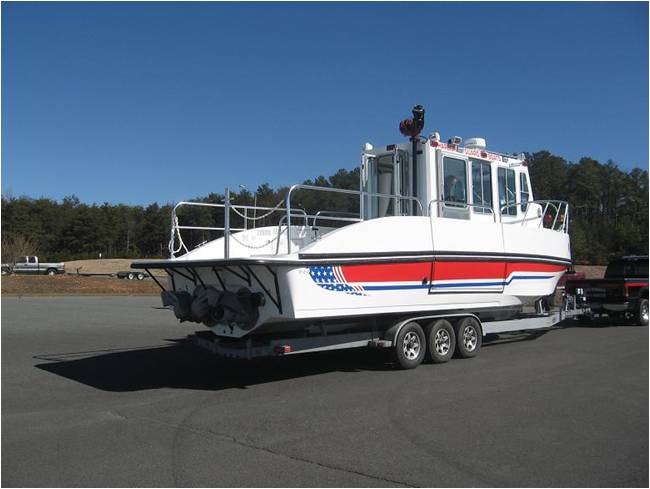

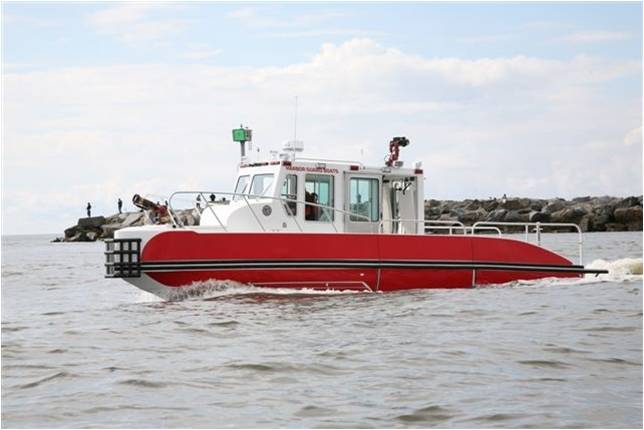

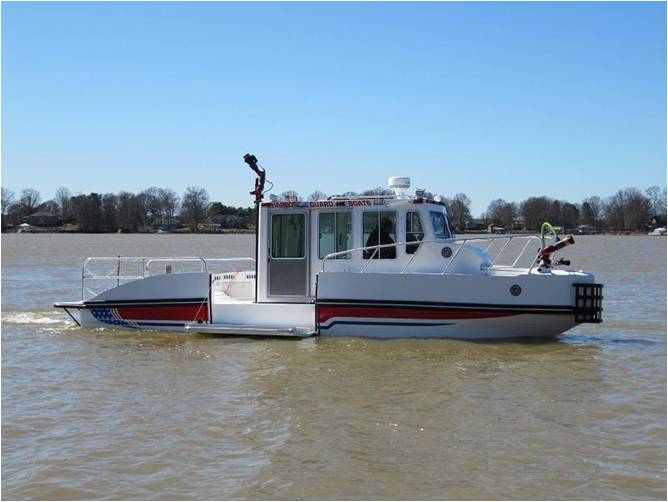

  • 30’ (9m) Model With optional ambulance style pilot house Beam : 10’(3m)
  • 30’ (9m) Model With optional ambulance style pilot house
  • 30’ (9m) Model Twin Outboards and Jet Drive/pump System (MCD)
  • 35’/ 37’ (11 / 11.5 m) Model With optional ambulance style pilot house Beam: 10 (3m), Standard open center console or optional 4 Person Pilot house also available

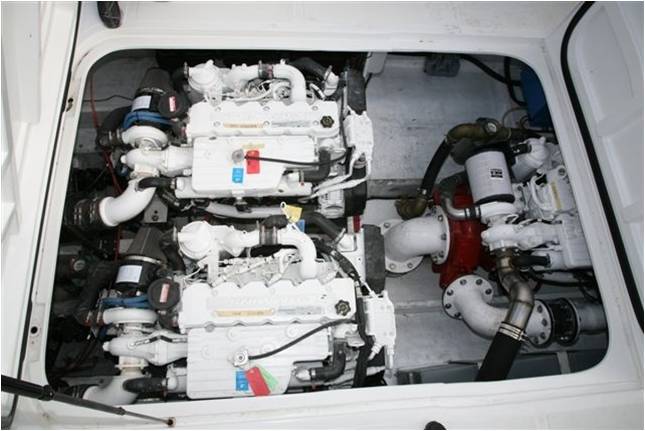

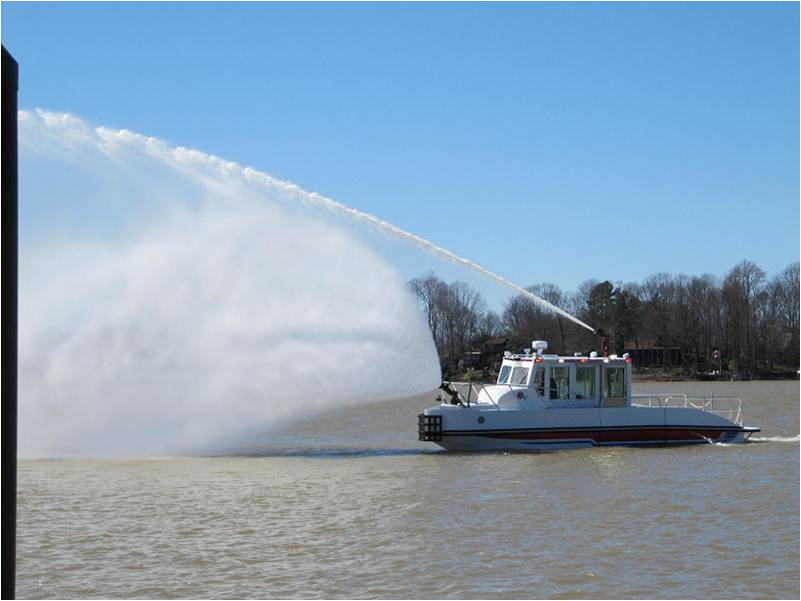

  • Dual Deck Fire Monitors 3000 GPM & Twin Diesel Engines 3000 GPM Diesel Pump System
Standard Features & Optional Features
  • Standard Features
    • Full engine instrumentation
    • Navigation and search lights
    • Aluminum baffled fuel tanks
    • Dual Electrically controlled waterline platform doors
    • Open center console configuration with hard top canopy
    • Polished Anodized Aluminum bridge framing and hand rails
    • Multiple built in water tight storage compartments
    • Back board storage areas and patient work area
    • Whelen Emergency LED Light bars
    • Shore Power with onboard battery charger
  • Optional Features
    • Heavy Duty Bow push bumpers
    • Extreme condition bow spray guard and bumper
    • Outboard Engine guard rails
    • 2 person pilot house(26-28 units only)
    • 4 person pilot house(30-37’ units only)
    • Ambulance Style pilot house(30- 37’ units only)
    • Pilot house Air Conditioning or Heat
    • Auxialary 3.5 kw marine generator
    • Heavy Duty Tow bit
    • Fire Suppression Systems(Firehawk only)
  • Optional Engines and Drives
    • Gas Outboards(Mercury Marine, Yamaha or Honda)
    • Gas Jet Drives(Mercury Marine)
    • Diesel Jet or Stern drives(Yanmar, or Cummins)
      • Available engine configurations depend on boat size See model specification sheets
  • Optional Fire Pump Systems
    • 1250 GPM Bronze Hale centrifugal pump and 200 HP Mercury Marine Optimax engine (2-stroke)
    • 2000 GPM Mercruiser 350 Mag MPI Engine with American turbine Jet drive diverter system
    • Diesel pump System – 750 GPM Bronze Hale with 125 HP Diesel Engine
    • Diesel pump System – 2500 GPM Bronze Hale pump with 260 HP Diesel Engine
      • All pump systems are always primed with through keel suction
Patented Multi-functional Combo Drive Fire Pump System Available on 26-30’ units
  • MCD Benefits over conventional pump systems
    • Higher GPM per dollar. Flows 2000 through one deck gun or up to 3000 GPM with 2 deck guns
    • Jet/pump serves a multi purpose . Not only used for fire suppression, but also for propulsion when needed
    • Jet can be used (instead of outboards) in low draft situations
    • Jet can be used during rescues, so outboard propellers can be stopped for added safety of people being rescued.
    • All HGB pump systems provide full boat control will flowing at maximum flow

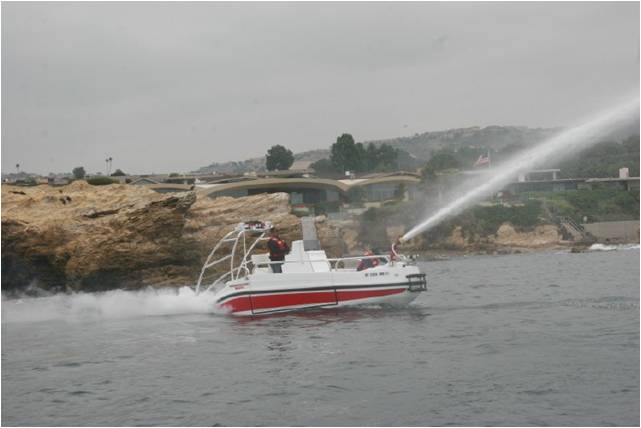

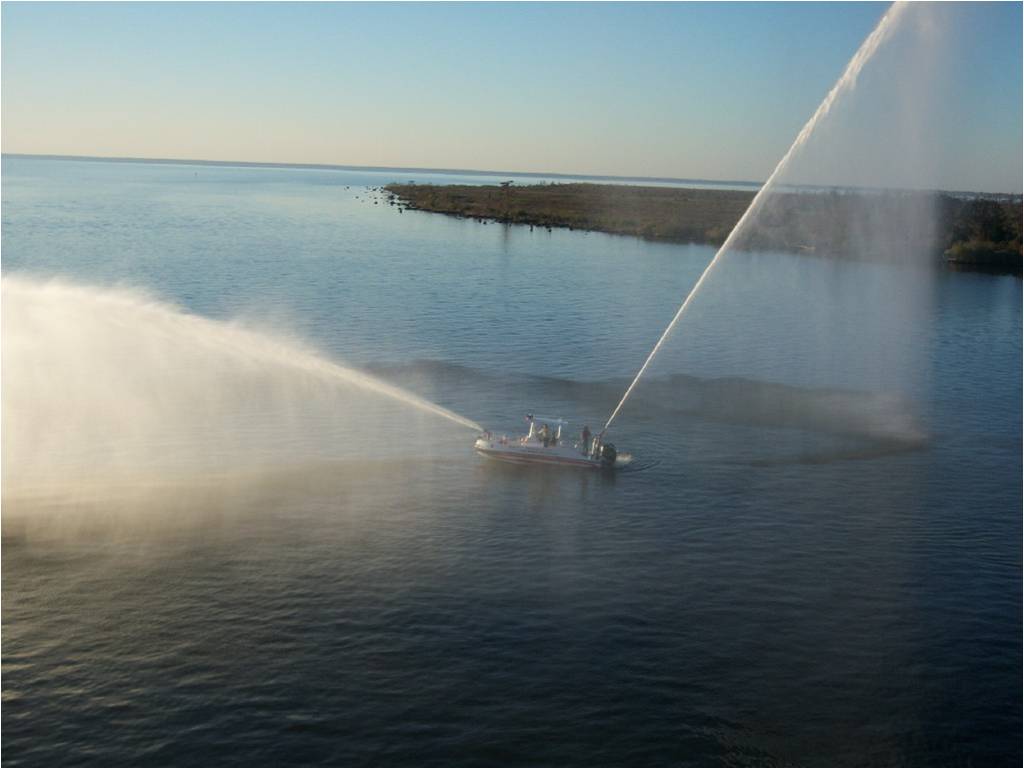

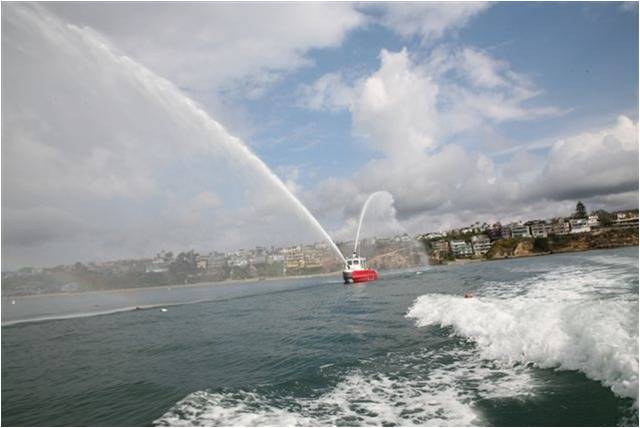

    • (Unit in photo is flowing 3000 GPM through MCD jet/pump system)

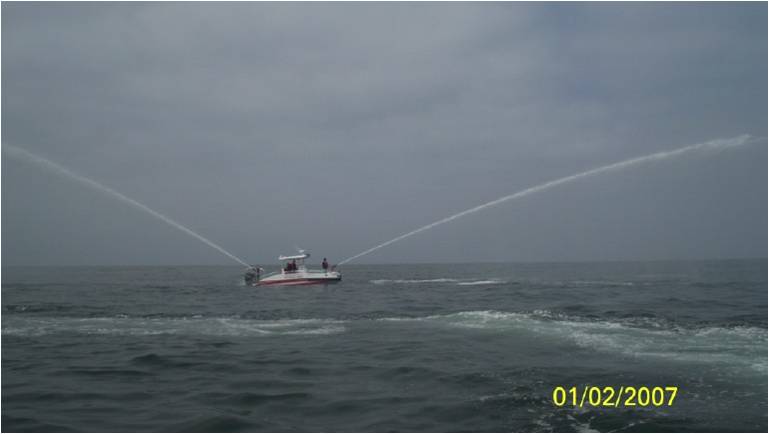

    • Dual monitors available on 26-37’ units only

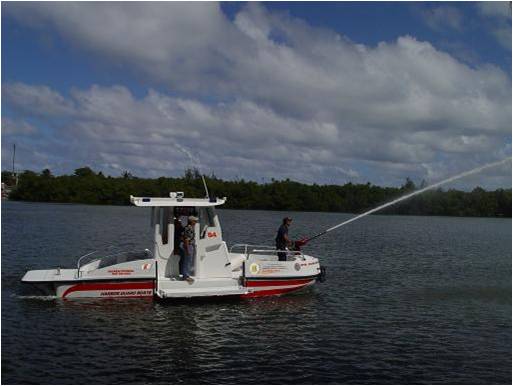

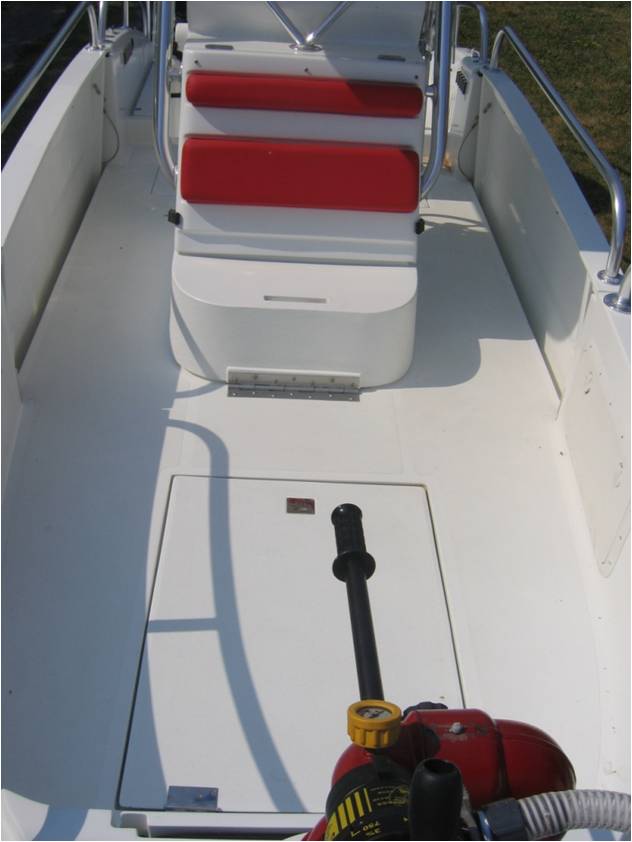

FIREHAWK 1820 Layout Outboard configuration also available
  • FIREHAWK 1820：

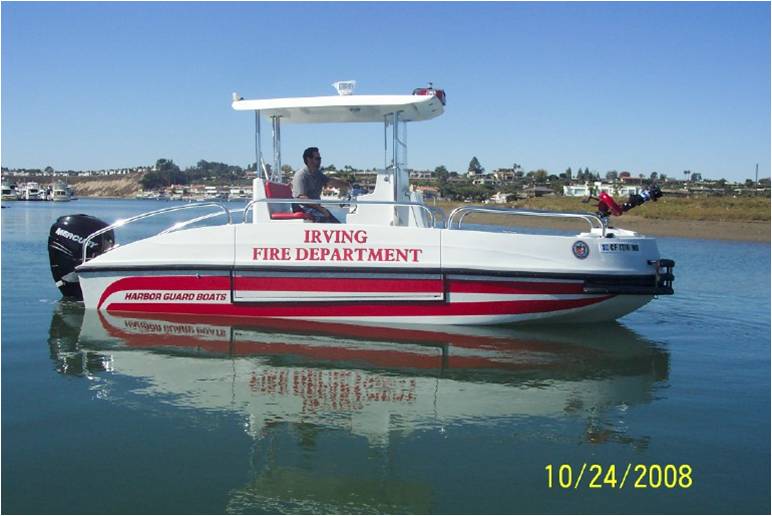

  • FIREHAWK 24'-26'

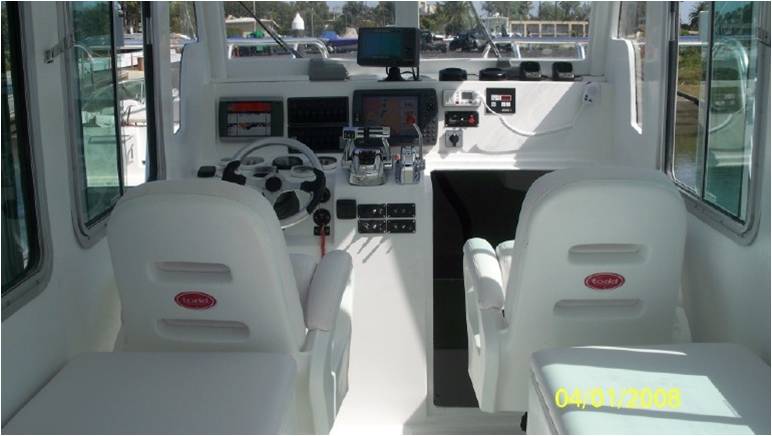

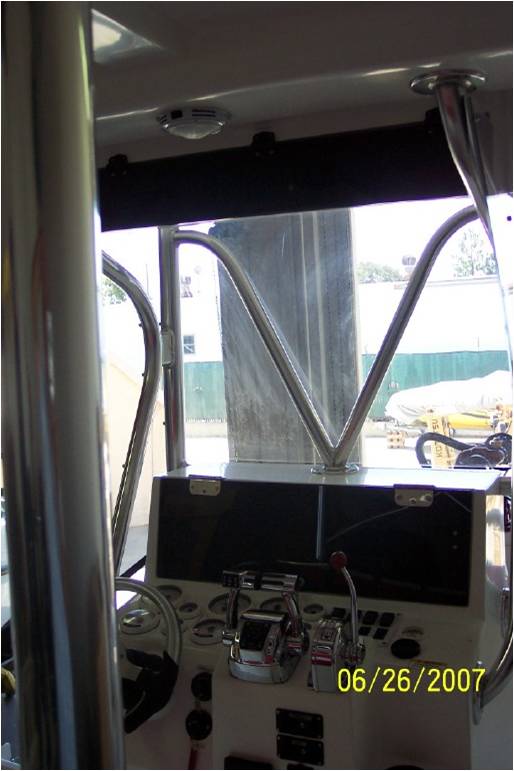

  • FIREHAWK 26'-28' (Lockable upper radio box and lower electronics cabinet)
  • FIREHAWK 30'-37'(Ambulance style pilot house)

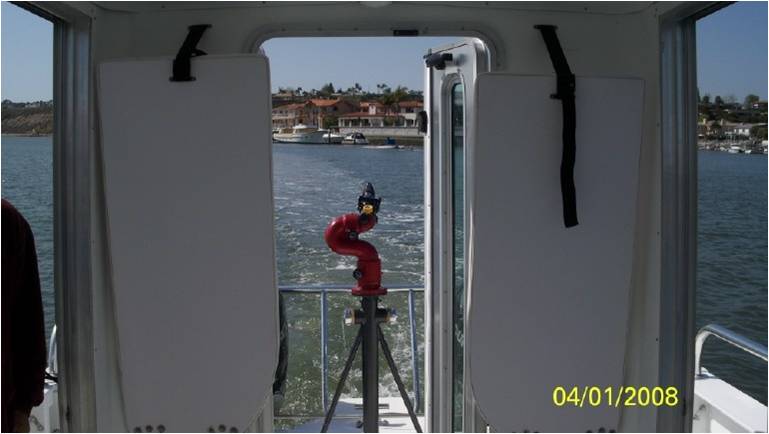

  • FIREHAWK 30'-37' Pilot configuration(Ambulance style pilot house shown with rear access french door)

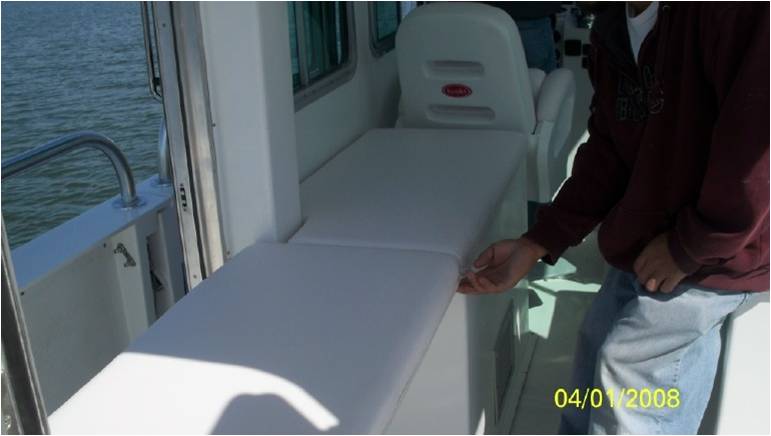

  • 2 patient bunks/bench seats that fold up when not in use
  • FIREHAWK 30'-37'Cabin configuration(Wrap around bench seat with bow compartment and mid-ship storage)
DEFENDER and FIREHAWK

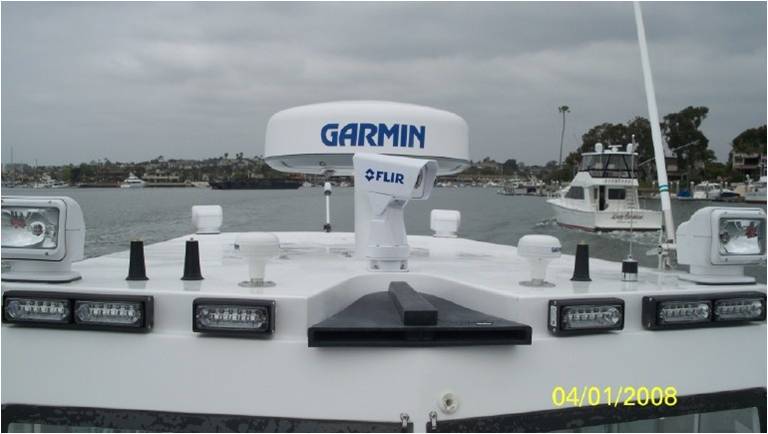

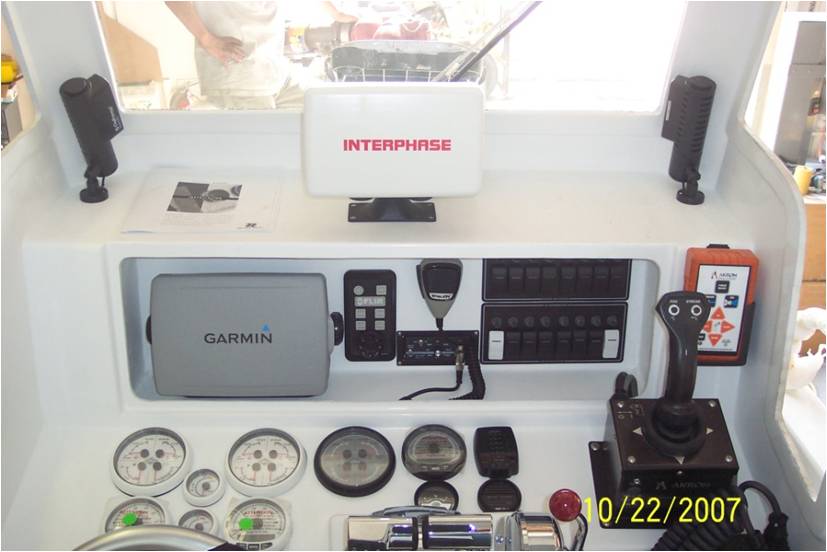

  • Electronics
    • Pilot houses have built-in LED search and emergency lights around the perimeter
    • Radar , Side Sonar, GPS/Depth Sounders, Night Vision Inferred Camera, remote controlled lights and fire monitors are common additions

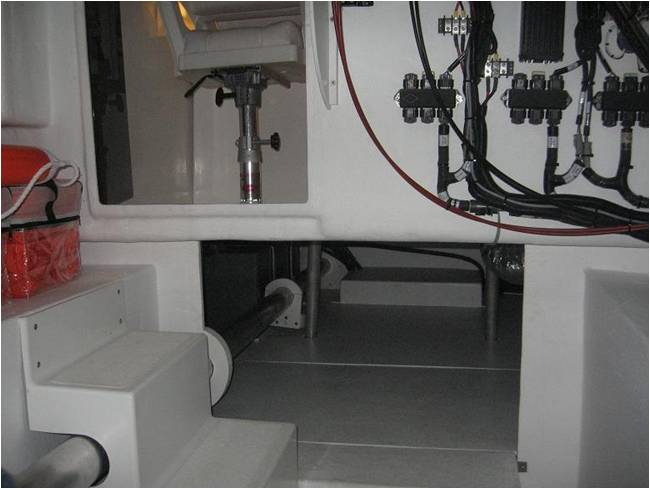

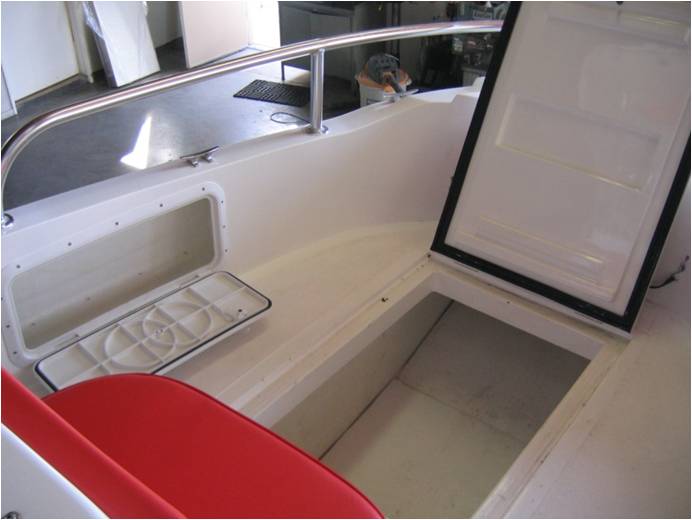

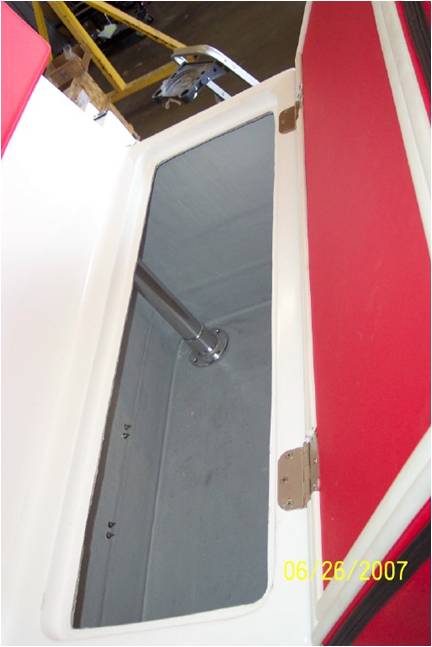

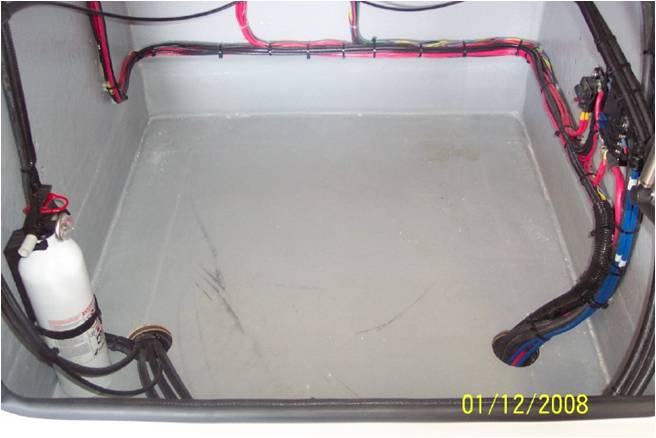

  • Multiple Storage Compartments
    • Below seat storage

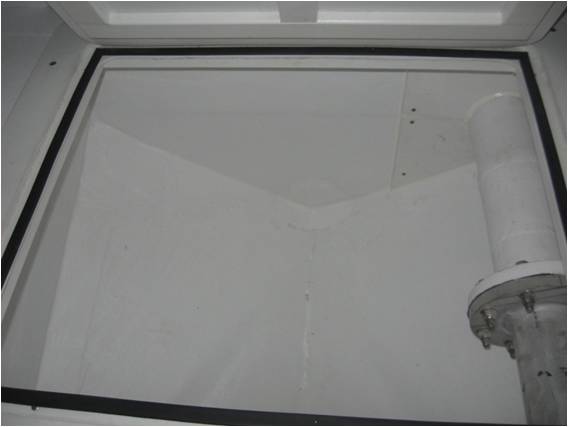

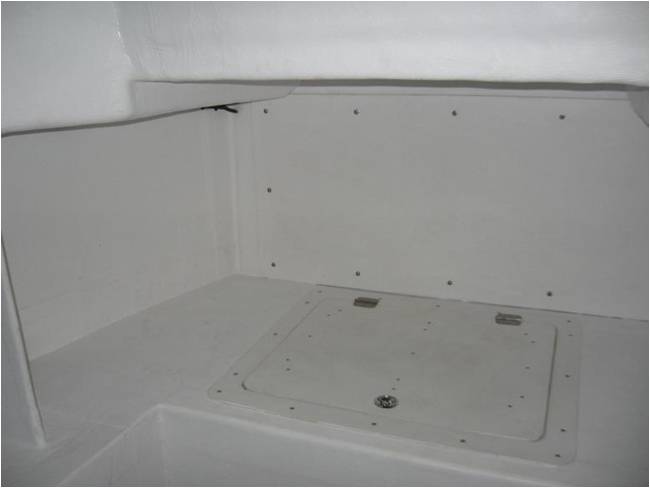

    • Below deck bow compartment
    • Two Gunwale compartments

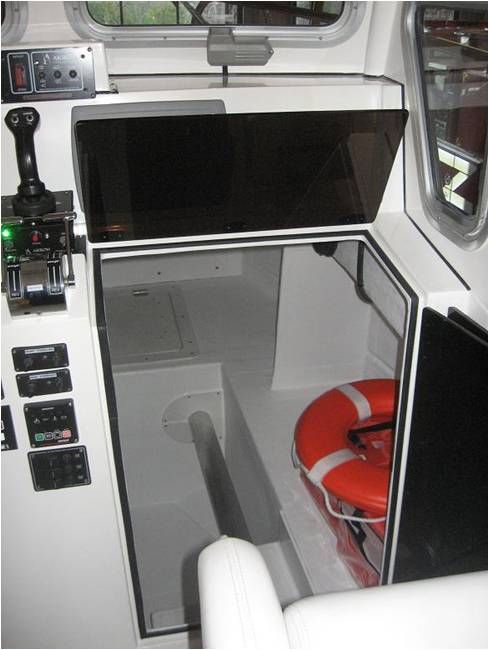

    • Helm Storage
    • Back board storage inside dive doors
  • STANDARD OPTIONS
    • Remote Controlled GoLight Search Light
    • LED Light Bar or LED Scene Lights
    • Additional Mounted Halogen Search Lights
    • Reinforced Gun Mount Points
    • Commercial Duty Bow Push Bumper
    • Stainless Steel Tow Bit
    • Canvas Helm Enclosures or Boat Covers
    • Outboard Engine Guard Rail
    • Gas or Diesel Marine Generator
    • Air Conditioning or Heat
  • Fire Options(FIREHAWK 18-37’)
    • 2.5” Auxiliary Water Discharges for hand lines
    • Foam Suppression Systems – FoamPro Single Pt Injection Precision Proportioning from .2 % to 6%. Class A or B foam. Tank size depends on customer needs 20-200 gallon capacity tanks available
    • Remote Controlled Deck Monitors and Electric Nozzles
INTERCEPTOR -1500 & FIREHAWK - 1550 series

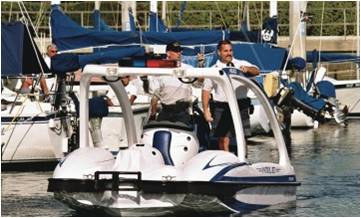

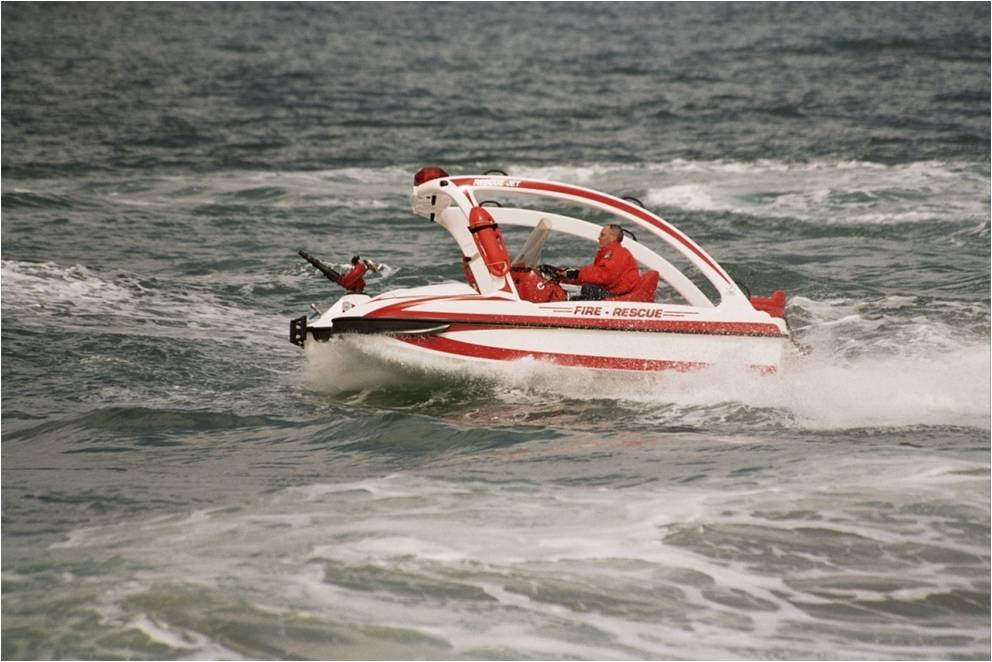

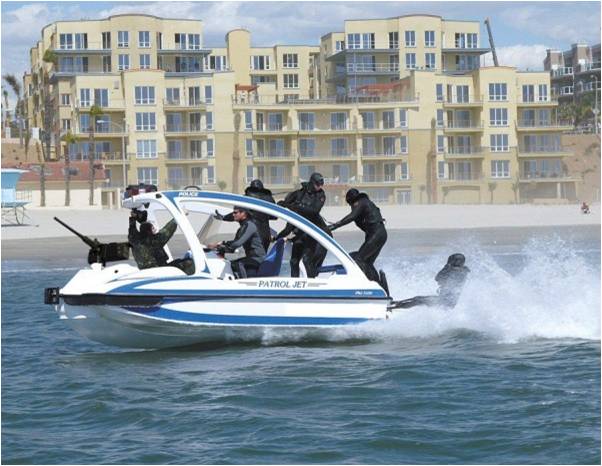

  • 15’(17’ LOA) Patrol, Rescue and Fire Boats
  • INTERCEPTORSERIESSPECIAL PURPOSE UNITS
    • FLOOD RESPONSE
    • NO WAKE AREA PATROL
    • COVERT MISSIONS
    • CANAL EMERGENY RESPONSE
    • SURF RESCUE
    • PERSONNEL TENDER

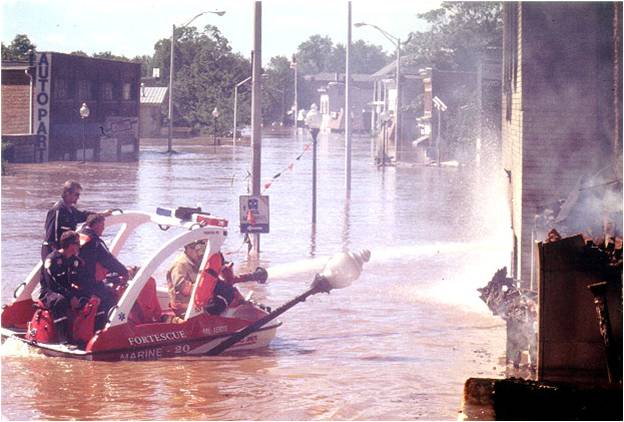

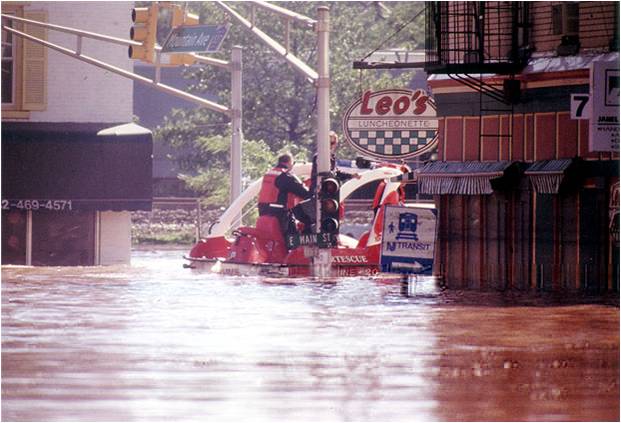

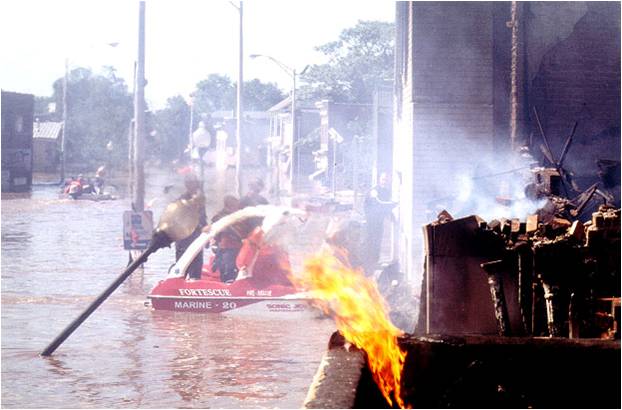

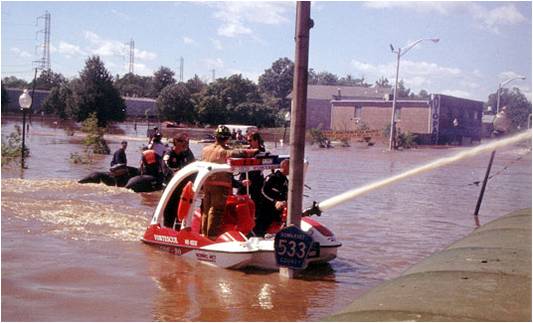

  • FIREHAWK SERIES Utilized during hurricane Floyd in Bound Brook, NJ

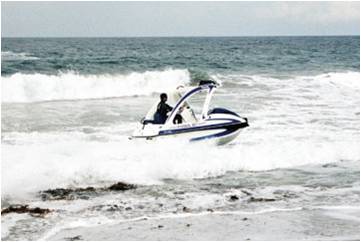

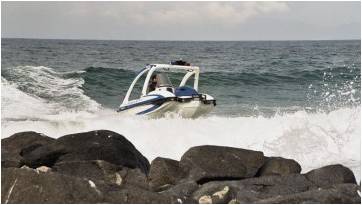

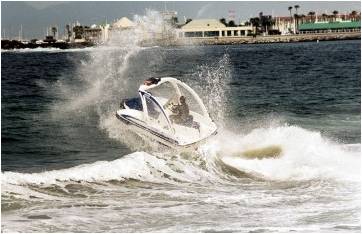

  • INTERCEPTOR SERIES Utilized for Surf Rescue and Patrol

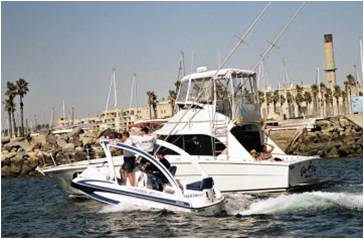

  • INTERCEPTOR 1500 SERIES Utilized for marina and low wake area patrol
  • STANDARD OPTIONS
    • Remote controlled GoLight Search Light
    • Additional mounted Halogen Lights
    • Garmin 545c GPSMAP
    • VHF Radio and Antenna
    • Single Axle Galvanized Trailer

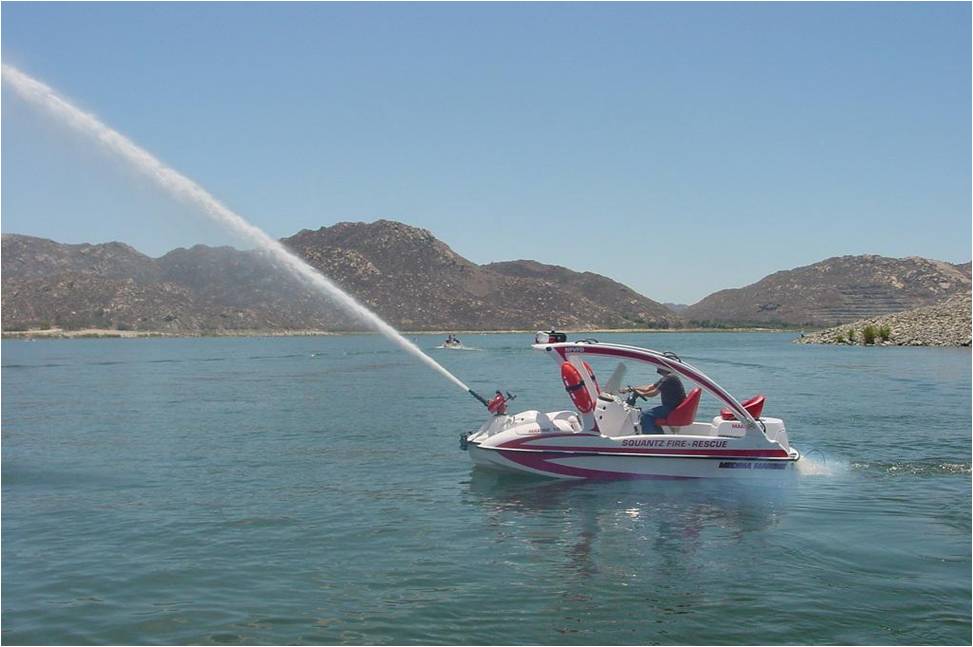

  • FIREHAWK 1550 SERIES Utilized for fire Suppression missions
    • 750 GPM Fire Pump System
  • FIREHAWK 1550 FIRE EQUIPMENT OPTIONS
    • 2.5” Auxiliary Water Discharges for hand lines
    • Foam Suppression Systems – Foam Eductor Nozzle Injection Proportioning from .5 % to 6% . Class A or Bfoam. Tank size: 20 gallon
CURRENT NEW PROJECTS

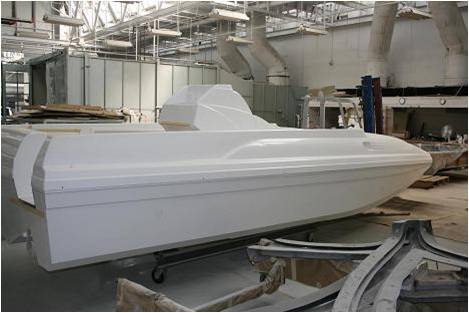

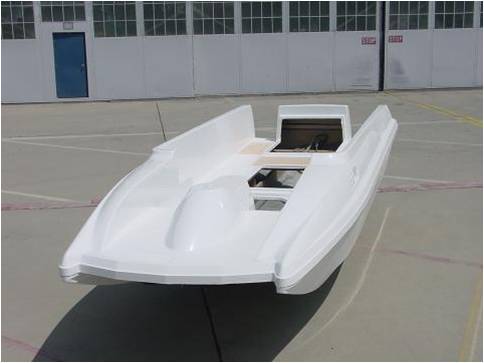

  • 21’ (6m) PATROL FIRE CAT High Speed CAT Style Patrol or Fire Boat
  • SPECIAL MISSION CRAFT
SUMMARY
  • HARBOR GUARD OFFERS VERSATILE SIZES AND CONFIGURATIONS TO MEET A RANGE OF MISSIONS
  • INNOVATIVE OPTIONS SUCH AS THE DUAL WATERLINE PLATFORM DOORS AND MCD PUMP SYSTEM PROVIDE AN EMERGENCY RESPONSE CAPABILITY NOT FOUND ON ANY OTHER WATERCRAFT IN THE WORLD
